Rsync backups

Rsync is an open source application used to synchronize files and directories from one location to another. BackupAssist’s implementation of this technology is in the form of an rsync destination that allows File Protection backup jobs to back up data across the internet. The data transfer is minimized because only the data that has changed is transmitted and all data packets are compressed. This means your internet backups will take less time when compared other remote backup methods such as FTP..

Rsync uses a checksum method to perform the bit level data transfer. Rsync checks whether any data has changed by looking at the size of a file and its modification date. If no data has changed, rsync will not transfer the data, saving time and bandwidth. If files do not match, rsync uses a checksum method called a rolling checksum on the changed file to see what has changed. It will then transfer only the altered or appended data within the file.

The performance and flexibility of backing up across the internet can depend on how rsync is implemented. Below are some key considerations when planning your rsync backup solution.

Backup user accounts

Rsync backup jobs require a BackupAssist administrator account with read access to the data source. This is set up using the Backup user identity, option in the Settings tab. The backup job will also need an rsync host account with read-write access to the rsync destination. This is enabled on the host server, and entered in the rsync destination screen.

VSS applications

VSS applications including Exchange, SQL and Hyper-V, can be backed up to an rsync destination using File Protection. For Hyper-V however, we recommended System Protection backups, which do not support the rsync destination but do support granular Hyper-V gest restores.

Exchange databases and SQL databases

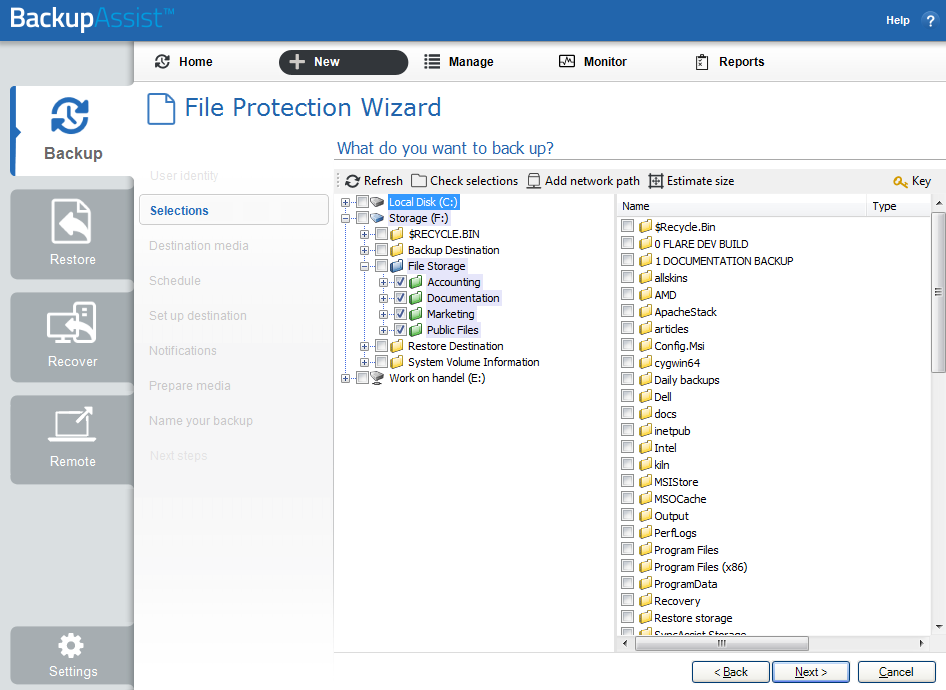

VSS applications including Exchange, SQL and Hyper-V, can be backed up to an rsync destination using File Protection. Simply choose the VSS application that you want to back up from the list of detected applications. You can even drill down and choose individual components (databases, storage groups, etc.) to backup. For Hyper-V, we recommended System Protection backups, which do not support the rsync destination but do support granular Hyper-V guest restores.

Synchronizing drive images using rsync

Rsync is a destination for File Protection backups. It is possible for the data source to be a System Protection image backup, but this solution is not recommended because significant performance issues that can arise. If you want to back up important files to an rsync host, the best way is to back up those files using File Protection directly. Continue to create your image backups, but back up the important files independently using a File Protection rsync backup job.

We also advise against using File Protection’s rsync, to transfer File Archiving backups to an rsync host. This is because rsync uses a checksum method to perform the bit level data transfer. Rsync checks whether any data has changed by looking at the file size and modification date. This is fast and simple on a regular file system, but if you have a very large single archive file (>10 GB) it will take much longer to complete, even if only a small element has changed.

Single-Instance store

File Protection backups cannot use single-instance store when the backup is saved on a ReFS formatted rsync destination. This means all the data will be backed up each time the backup job runs.

Backup frequency

Run your rsync job regularly. Regular daily backups will keep your data transfer to a minimum and your data up-to-date.

Simultaneous backups

If you have a large number of backup jobs sending data to a host at the same time, the connections may become unreliable. It is recommended that you limit the host connections 5 at a time. Depending on storage requirements and the bandwidth available, you may increase this number with caution.

Rsync backups are incremental backups. The first time you perform your backup, no data will exist on your data host so a full backup is required. Doing this via an internet connection may not be practical so you may have to seed your first backup to the rsync host. Once the initial seed to the data host is complete, each successive backup will be an incremental backup of data that has changed.

How to Seed an rsync backup

Two data seed options are available for rsync host servers that you have local access to.

Option 1 – Seeding a permanently offsite data host

You can use BackupAssist’s Seed Backup function, to automatically seed data offsite using a removable media, which can be physically transported to the data host so that the data can be uploaded locally.

To seed your data using this method, follow these steps:

1. Connect a removable media device to the machine running BackupAssist.
2. Select your backup job from the Manage menu
3. Select Edit from the top menu.

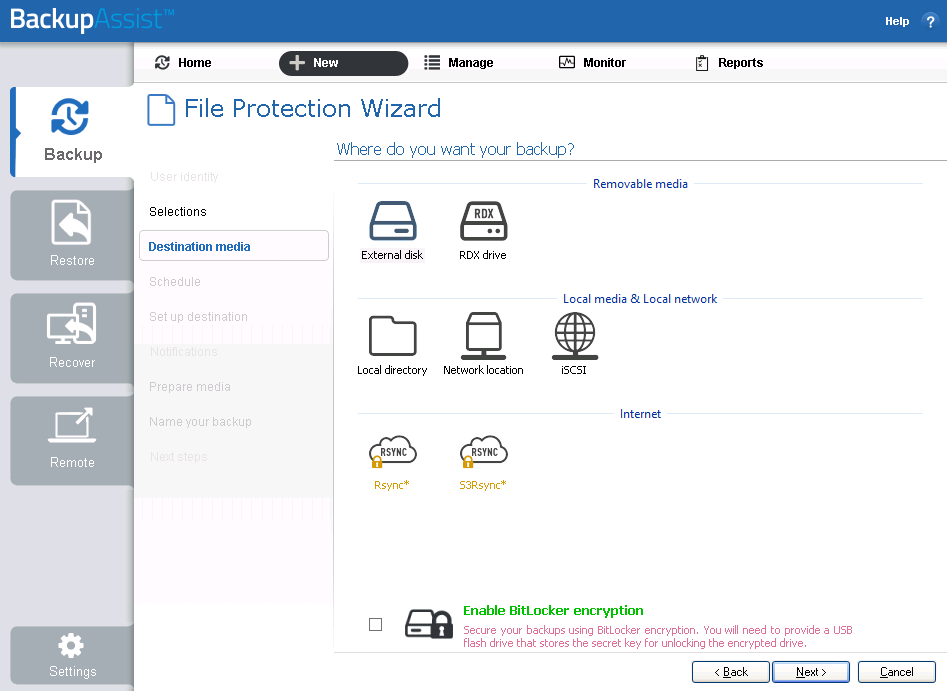

4. Select the Destination left menu item.
5. Click the Seed backup button
6. Select the location of an empty folder on your portable media.
7. Once the seed is complete, your portable media should contain:
• A directory with the seeded data
• A README.txt file containing instructions on how to copy the seed to your rsync server
• An .sh script file, which is used to copy your data to your rsync server.
8. Transport the portable media containing the seed to the site where your rsync server is located.
9. Connect the device to the rsync host server and copy the seed to it:

For a Windows server (assuming the seed is located on E:\SeedFolder)

1. Go to the Start menu > CopSSH > Start a Unix BASH shell.
2. Enter the following command: bash "/cygdrive/e/SeedFolder/seed.sh".

For a Linux or Unix server (assuming the seed is located in /mnt/usbdrive/SeedFolder).

1. Run the following command in your shell: bash "/mnt/usbdrive/SeedFolder/seed.sh".
2. A complete seed of your data should now be copied to your rsync server. Each successive backup from now on will be an in-file delta incremental backup of data that has changed.

Option 2 – Bringing your data host onsite to perform the seed

This method is suitable for “standalone” data hosts (where a data host is not shared among multiple clients) that can be physically transported onsite – such as NAS devices.

Seeding your data is easy – simply follow these instructions:

1. Connect your data host to the LAN and make a note of its IP address / Hostname.

2. Create your BackupAssist rsync job, run it at convenient time and wait for it to complete.

3. Move your NAS to its permanent location.

4. Update the job settings in BackupAssist to reflect the new IP address / Hostname.

Note: If you enable or disable encryption for an rsync job, BackupAssist will need to re-seed the backup to the rsync backup destination with a full set of data.

When backing up with rsync over an SSH connection, the connection is established using public key cryptography. This involves a pair of keys (private and public) that are generated using a special algorithm, to make authentication secure without requiring a username or password. When setting up your rsync backup job, and click the Register with server button, BackupAssist will attempt to generate the required authentication keys and store them in the appropriate locations, with the public key copied to the rsync destination. In some instances BackupAssist is not be able to upload the public key to the rsync destination. This article explains how to identify such cases as well as how to transfer the public key manually.

Determining whether public key transfer was successful

Even if registration to the rsync server is successful, you may you receive a SSH authentication failed error after clicking Test connection. Failure to upload the key can happen for various reasons, including insufficient permissions to the public key destination folder or a security setting on your rsync server. To resolve this issue you can transfer the public key file to the rsync server manually.

Follow these steps to perform the manual transfer:

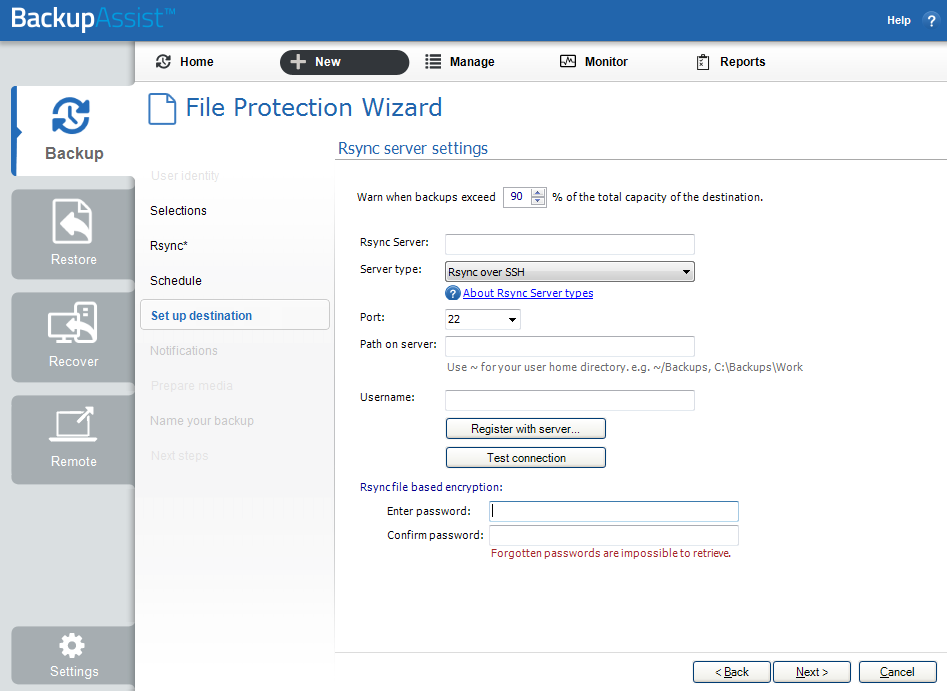

1. Click the Register with server button to create the pair of authentication keys:
2. Find a file called ba_id.pub on the system running BackupAssist. The default file locations are:
   Server 2003: C:\Documents and Settings\All Users\Application Data\BackupAssist vX\.ssh
   Server 2008 and later: C:\ProgramData\BackupAssist vX\.ssh.

vX refers to the version of BackupAssist you have installed.

Application Data (Server 2003) and ProgramData (Server 2008 and later) folders are hidden by default, so you may need to modify your Windows settings to show hidden files and folders.

3. Once you have located the ba_id.pub file, copy it to your rsync server
   The location you copy to does not matter at this stage.
4. On your rsync server find the location of the .ssh folder.

This folder is commonly found in the /home/<sshuser> folder on your rsync server (where <sshuser> is the user that was entered in BackupAssist to authenticate to your rsync server), but can be in a different location depending on your setup.

5. If a file named authorized_keys exists in the .ssh folder:
1. Open the authorized_keys and the ba_id.pub files in a text editor.
2. Copy the contents of ba_id.pub and paste it into the authorized_keys file.

If the authorized_keys file does not exist in the .ssh folder, move the ba_id.pub file to the .ssh folder and rename it to authorized_keys

6. [Optional] For security reasons, ssh will not allow authentication if the .ssh folder and authorized_keys file are readable and writable by other users. To make sure permissions are correct, run the following commands:

chmod 700 .ssh

chmod 600 .ssh/authorized_keys

7. Now, test the connection to your rsync server in BackupAssist by clicking the Test connection button

BackupAssist should now authenticate to your rsync server successfully:

Note: While a public key can be safely copied and distributed anywhere, the private key needs to remain private. If someone obtains your private key, they can use it to impersonate the user and gain access to your rsync server.

Conclusion

When backing up with rsync over an SSH connection, a public/private authentication key pair is created and used to make a secure connection to the rsync destination. If you experience an authentication error when testing the connection to the rsync server it may be because BackupAssist was unable to transfer the public key to the destination server. In this case, you can manually copy the contents of the ba_id.pub file on the machine running BackupAssist and paste it into the authorized_keys file on your rsync server. Alternatively, if the authorized_keys file does not exist on the rsync server, you can rename the ba_id.pub file to authorized_keys and move it to the .ssh folder. This should allow BackupAssist to successfully connect and authenticate to your rsync data host.

If you have any questions about this article, please email us at support@backupassist.com
