Exchange Information Store and Mailbox Backup

BackupAssist supports two types of Exchange Server backup:

Storage Group and Information store

Backup your entire Exchange Server Information Store database. Having a backup of your entire Exchange Information Store database allows you to perform a complete restore of your Exchange Server, including public folders; and best of all, the Information store backup capability comes absolutely free with your BackupAssist license.

Individual mailbox

With the Exchange Mailbox Add-on you can achieve brick-level backups of your Microsoft Exchange Server, including public folders. This allows for simple and rapid restoration of individual or group emails, calendars, tasks, notes, contacts or entire mailboxes.

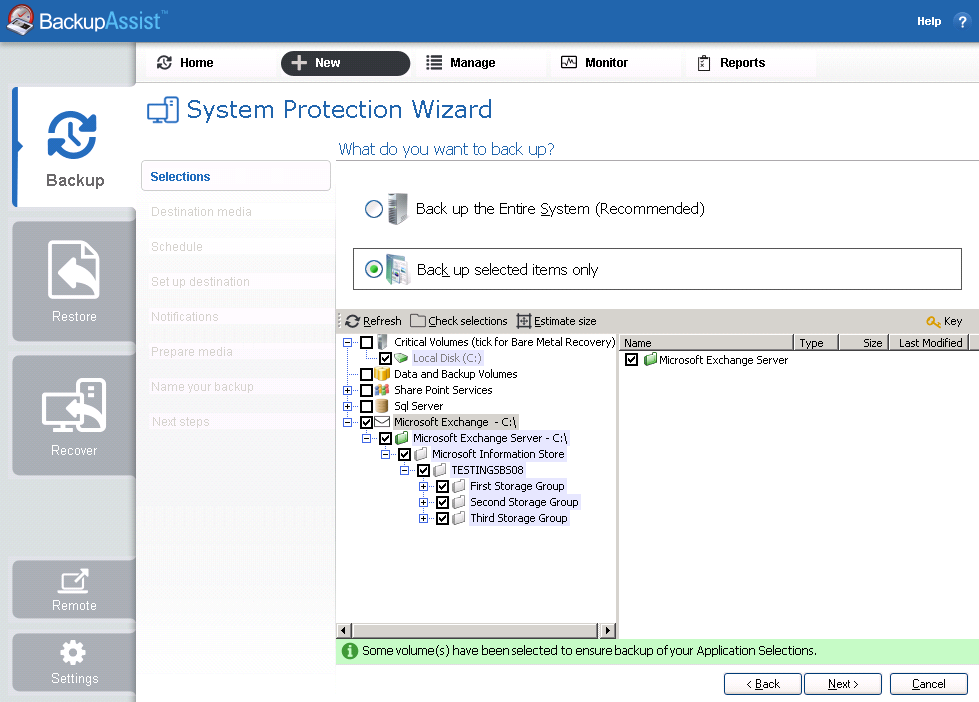

Select the Exchange Storage Groups to backup

VSS application backup of Exchange

Backing up the Storage Groups and Information Stores

BackupAssist gives you three ways to backup your entire Exchange Server:

• Using NTBackup, you can perform a live streaming backup of a running Exchange Server 2000, 2003 and 2007.
• Using Windows Server Backup on Windows Server 2008 and 2008 R2 you can perform a live streaming backup of Exchange Server 2007 and 2010. You can read more about this here.
• Using VSS with the File Replication, Zip, Rsync and Imaging engines you can perform a consistent VSS application backup of Exchange Server 2003, 2007, and 2010. Simply choose your Exchange Server from the list of detected applications (you can even drill down and choose individual storage groups, etc).

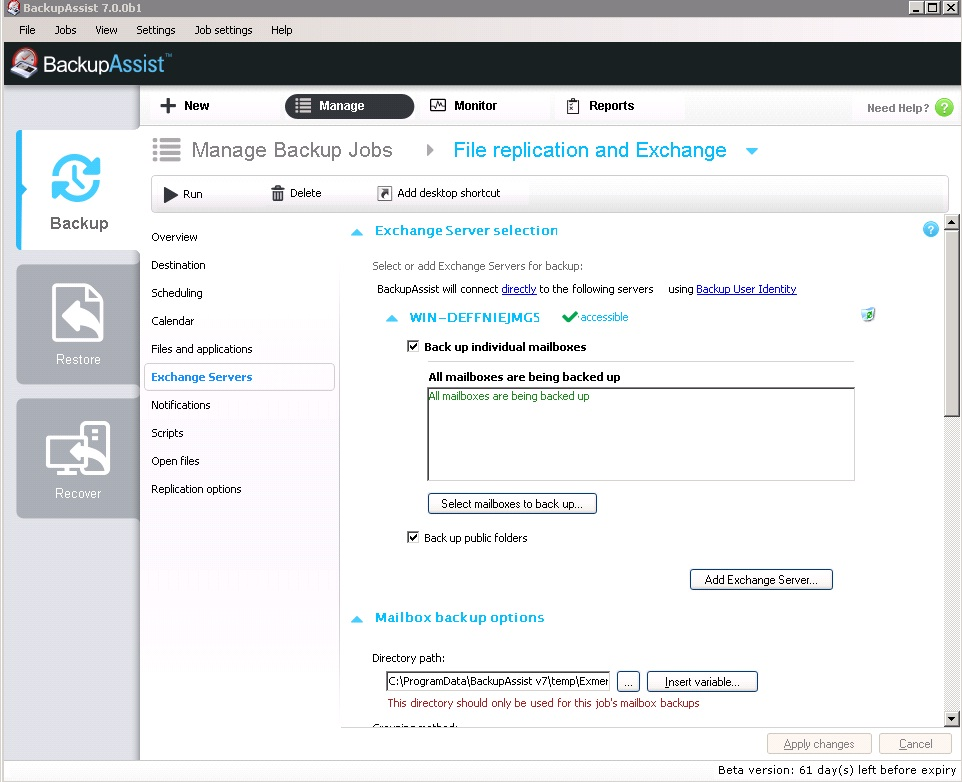

Select the Exchange Mailboxes to backup

Backing up Individual Mailboxes

Using our Exchange Mailbox engine, you can backup individual mailboxes and public folders for extra data protection.

Our Exchange Mailbox engine is so advanced that it will sort and group your emails by date range and allow you to store the emails as PST files for maximum compatibility.

Advanced options also exist for you to perform the backup in archive mode (where the original messages are deleted). If you combine this feature with the Journaling features in Exchange, you can achieve the capture of every incoming and outgoing email. This can be very useful in helping meet compliance needs.

How to restore Exchange Server

There are 3 different options available when restoring Exchange Server data:

1. Restoring entire storage groups.
   In the event of a major corruption or disaster, you can perform an online restore of your Exchange Server, as outlined in our Exchange White Paper. If you performed a VSS application backup of your Exchange Server you can use the BackupAssist Restore Console to restore your Exchange Server storage groups.
2. Restoring entire mailboxes
   For minor restore jobs like restoring a full or part of a mailbox, you can either:

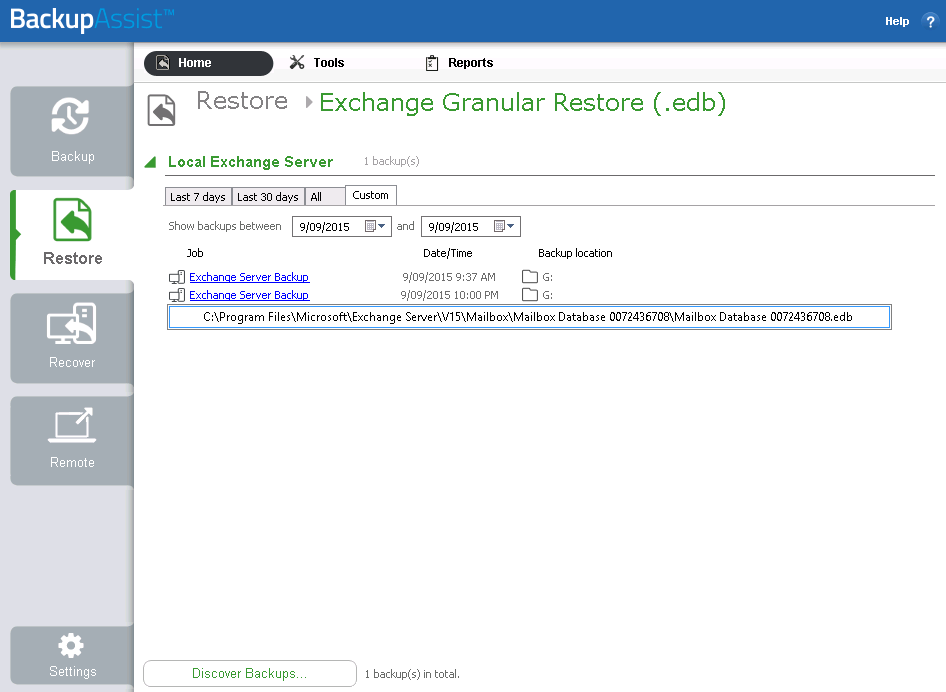

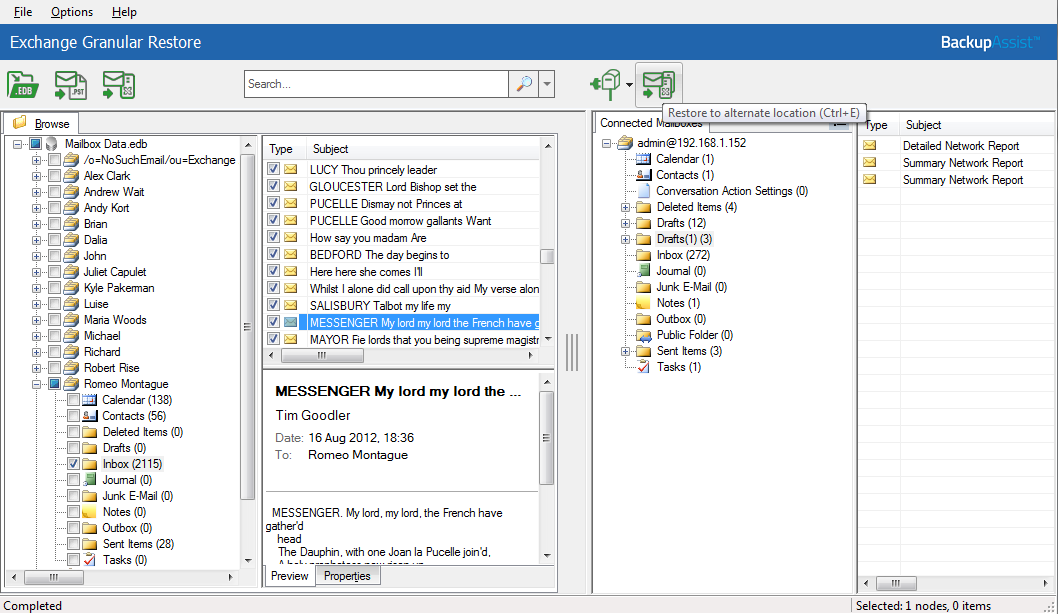

   1. Use the BackupAssist Restore Console to select mailbox(es) and the date range of the mail items you want to restore, and click restore! Public Folders can be restored in exactly the same way.
   2. If your mailboxes were backed up using Exmerge (Exchange 2003 only) you can perform an online restore of your Exchange Server to a Recovery Storage Group and then use Exmerge to migrate across the relevant mailbox, or simply use Exmerge to restore directly from your Exchange Mailbox Backups.
3. Retrieving messages from a mailbox backup anywhere, at any time.
   Simply open your mailbox PST file on any computer with Outlook installed, and drag-and-drop the relevant items to copy them back.

For the more advanced scenario of migrating an Exchange database to a new server, you also have the ability to forklift the Exchange databases from your file-backup of the Exchange data files.

Resources

• Exchange Mailbox Add-on Brochure
• Exchange Mailbox Add-on Quickstart Guide
• Exchange Whitepaper
• Exchange Mailbox Add-on Whitepaper
