Cloud Backup

Cloud Backup is a BackupAssist add-on that allows you to back up data to Microsoft Azure Blob Storage, Amazon S3, Wasabi, Backblaze, and any S3 Compatible cloud storage - including private cloud implementation platforms such as MinIO. Cloud Backup is a best practice cyber-resilience solution and is a recommended backup type for all servers and workstations.

Backups in the cloud can be protected from malicious actors through the use of Immutable Cloud Storage. Visit the Immutable Cloud Backup page for more information.

How to perform a cloud backup to Microsoft Azure

How to perform a cloud backup to Amazon AWS

Cloud backups provide convenient backup destinations with the following advantages:

  • Scalability – your storage will scale with your needs and the total storage available can be increased by updating your subscription package.
  • Affordability – you do not need to purchase or maintain storage devices or storage servers.
  • Flexibility – from v12.1.0 onwards, you can carry out files and application restores as well as Bare Metal recovery with cloud backups.
  • Security – your data is encrypted to prevent unauthorized access to your backups.
  • Availability – cloud computing uses data centers that have a better level of availability than could be achieved with your own local servers.
  • Efficiency – Cloud Backup uses deduplication and compression to reduce the amount of data that needs to be transferred to the cloud each time a backup runs.

Cloud Backup backs up files in chunks and keeps track of what files have been sent to the cloud destination. This means if the backup jobs is interrupted, for example due to a network or internet outage, the backup job would retry the interrupted upload operation.

BackupAssist will retry several times to complete the interrupted upload operation.

Retry Cloud Backup operation outcomes:

  • If the subsequent retry of the operation succeeds, the backup will complete successfully.
  • If the backup job cannot resume, it will not create a backup and the job will fail.
  • If the backup job can resume after skipping data chunks that could not be backed up, the backup job will continue without those files and add a warning to the backup report to advise what files were not backed up.

Note: If you manually cancel a Cloud Backup job in BackupAssist, the next time that job runs (either manually or scheduled), the backup job will not re-upload the chunks that have already been uploaded previously.

Below is a list of the most common questions asked about BackupAssist Classic Cloud Backup.

Click on the question to view the answer.

The following restore and recovery options are supported:

  • Local and Network Files
  • Bare-metal recovery
  • Directly boot into backup for business continuity (VM Instant Boot)
  • Files inside Hyper-V Guests
  • Exchange Server (entire databases)
  • SQL Server (entire databases)
  • Full VM Recovery (from the Recovery tab)

Cloud backup does NOT support:

  • Rapid VM Recovery
  • SQL point-in-time

All data is encrypted on the local machine that BackupAssist is installed on prior to it being transferred over a secure connection to the cloud provider you’ve chosen as your destination. Because this is BackupAssist's own encryption, the cloud provider cannot access the backup, or even see what data you backed up. In addition to this, the cloud service provider will apply its own encryption to the cloud container to further protect the backup.

In addition to this, your files are also password protected and there is no way to access your data without this password. It is recommended you do not share this password.

Warning: We also recommend that you store a copy of your password somewhere secure, as BackupAssist Technical Support cannot recover lost passwords.

If you use the cloud provider's portal, or another tool, to look inside the backup container (Azure) or bucket (AWS), you will see:

  • File CRYPT – this file is a critical component in securing your backups.
  • File ROOT – this is the entry point allowing BackupAssist to find the backups in the container.
  • Directory chunks – this is where all of the backup data is located.

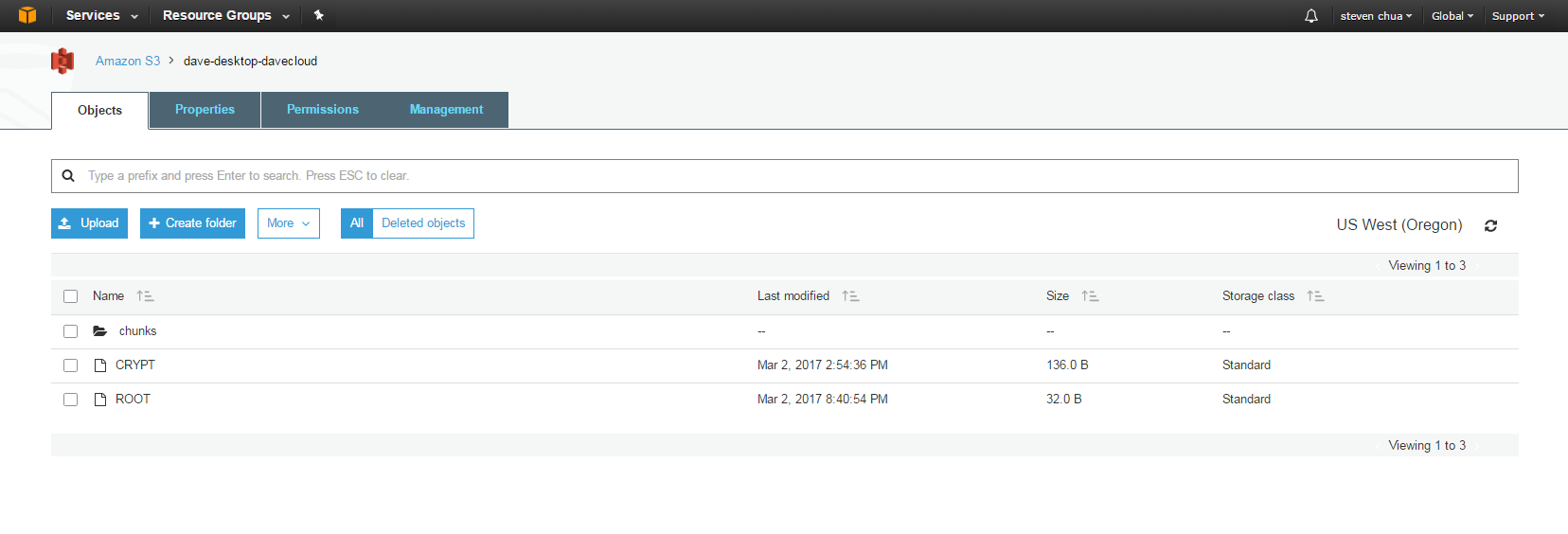

Cloud Backup container contents

Yes, all the data that you back up is deduplicated and also compressed.

To learn more, see our deduplication article.

Nothing. Making any changes to the contents of the Cloud Backup's container could cause your backups to be corrupted and unusable in a restore scenario.

Warning: The data inside a container is NOT intended to be used directly by users, and is not human-readable. BackupAssist tools must be used to restore or recover from Cloud Backups

BackupAssist automatically removes data that is no longer needed (from old backups) from the provider, to reduce storage costs.

The process does not yet support concurrent backups or concurrent backup and restore, meaning that if you try to have more than one backup running to a container then one or both backups may become corrupted.

Cloud Backup is designed to make full use of the available bandwidth, and we have seen utilization exceeding 200Mbps.

Cloud Backup uses deduplication and compression to give effective speeds that are even greater.

Note: As always, actual throughput will vary depending on network setup, current network utilization, machine loading, etc.

Yes, you can choose from Azure ,AWS S3, Wasabi, BackBlaze or any other S3 compatible cloud storage providers or private cloud implementations such as MinIO.

No, Amazon Glacier is not currently supported.

No, CSV is not currently supported for Cloud Backup.

To back up guests on a CSV, use System Protection, File Protection, File Archiving.

To learn more, see Hyper-V in a CSV environment

Cloud containers are managed by the cloud service providers. We do not currently have the ability to manage how the container is managed, as this is controlled by the providers own consoles and features..

However, it is worth noting that you can use BackupAssist Classic to set how many backups are kept in the cloud destination using Cloud Backup’s Schedule options. This allows you to control how many versions of backups to retain, which would directly affect how much space your cloud container will require.

When you create a Cloud Backup job, you can seed the data to the cloud destination if there is too much data to send across the internet in the first full backup. Seeding involves putting the data on a removable drive and sending it to your cloud provider so they can copy the data to your cloud container. Your backup job will then detect the data in the container the first time it runs, and only back up data that has changed.

When to seed

You should consider seeding if the time required to back up all the data on a Cloud Backup's first run would be too long and impact other processes. This will depend on the amount data you have selected and the performance of your connection. For example, if the backup will take more than a day, it may impact your network during business hours and prevent scheduled backups from running, so seeding would be a viable option.

Seeding with BackupAssist

BackupAssist has a Seeding Tool, which prepares the drive that you send to your cloud provider by copying to data to the drive in the correct format. The process from that point on is defined by your cloud provider.

This means there are two processes to follow:

Process 1 - follow the steps in the BackupAssist seeding guide.

Process 2 - follow the steps in your AWS, or Azure cloud provider's guide.

Creating cloud storage

Before you can run a Cloud Backup job, you need to have a cloud destination set up. The following sections explain how to create cloud storage for Amazon S3, Microsoft Azure, and any S3 compatible providers and devices.

To create Azure cloud storage, go to https://azure.microsoft.com/ and create an Azure account and a storage account. The Cloud Backup job will create a container (called a blob) inside this storage account for the backup job to use.

Creating a storage account

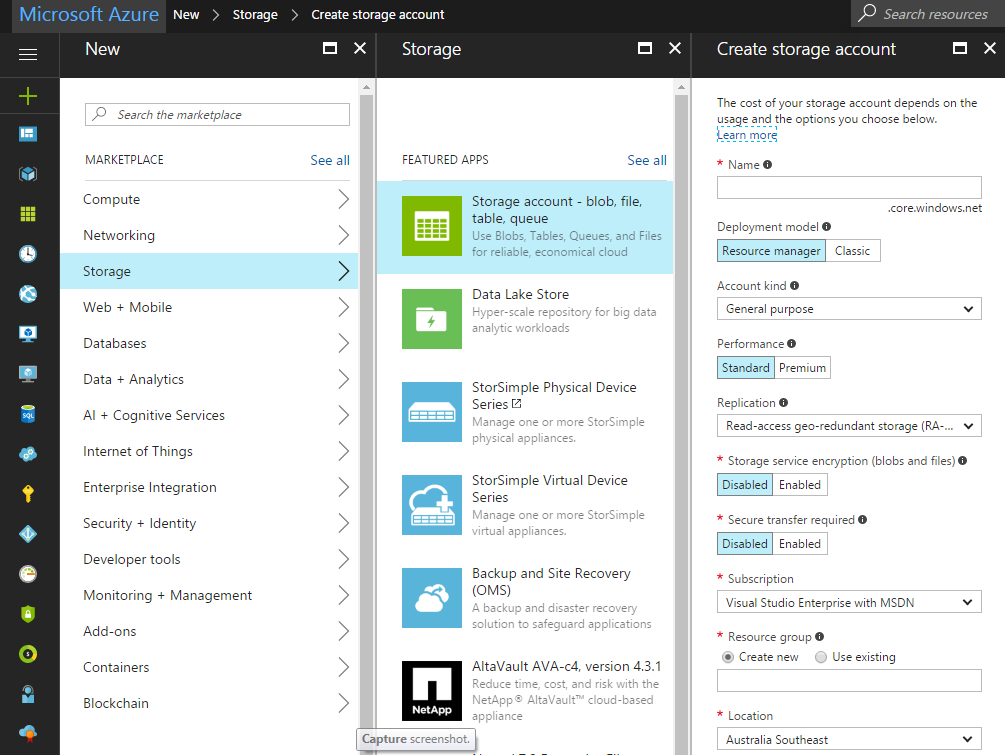

Create Azure Storage Account

  1. Log into your Azure account and go to the Portal, if you are on the default home page.
  2. Select + New from the top left.
  3. Select the Storage Account option next to the green icon.
  4. Enter the storage account details in the fields provided. The existing selections are defaults and the options selected can effect the cost. For Account kind enter Blob storage. Once the Resource group has been create, it will appear in your list of resources after you refresh the UI.

You can have multiple storage accounts in your Azure account.

When backing up to a Microsoft Azure container, a connection string is used by the backup job to access the storage account. The connection string is entered in the Set up destination step when creating the backup job.

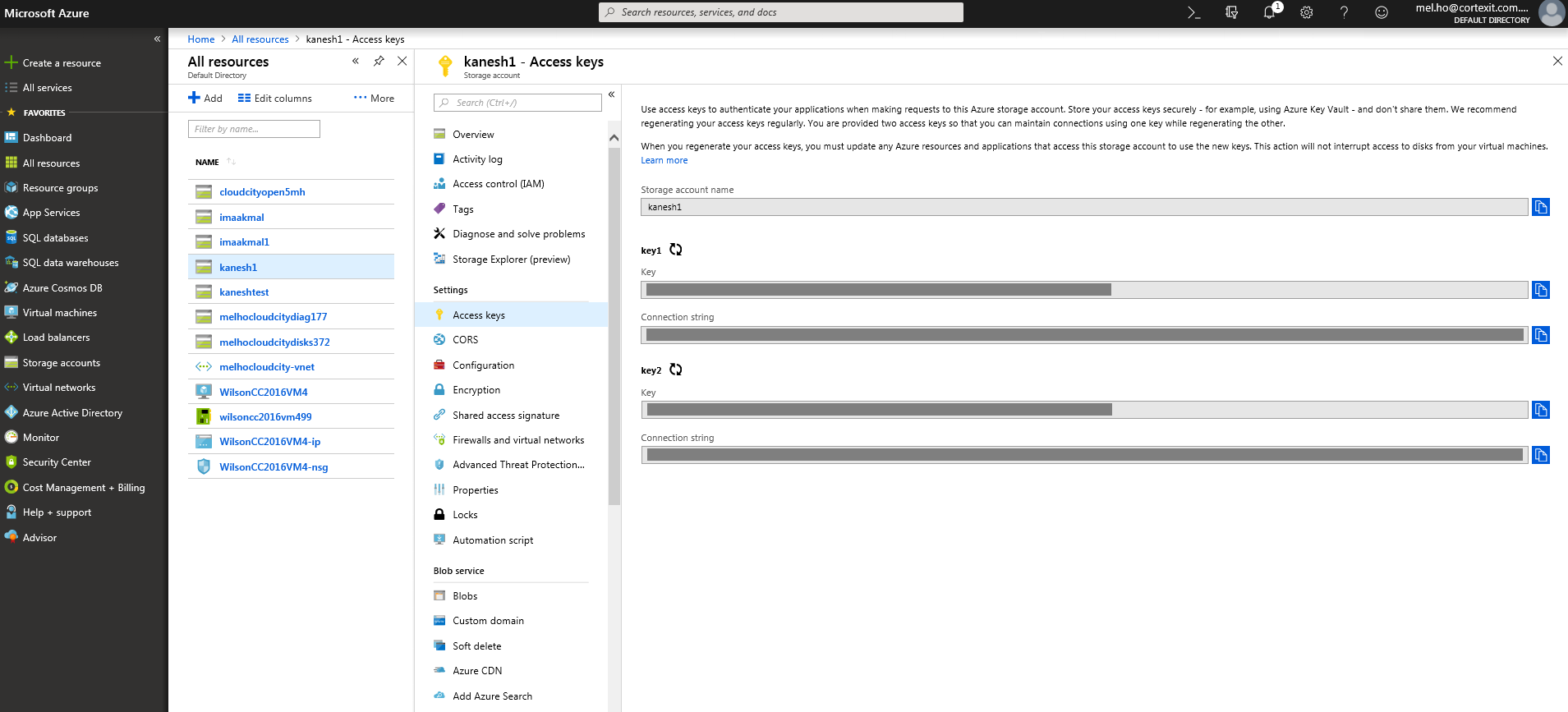

Azure connection string

To locate the connection string:

  1. Log into the Azure portal.
  2. Select the Storage account from the Resources list.
  3. Select Access keys from the list of Settings.

    4. The dashboard will display the Keys and Connection strings for the selected storage account.

  4. Using the copy button, select a Connection string from one of the key sections. E.g. under Key1.
  5. Paste the connection string into the field provided.

To learn more, see the Microsoft documentation, About Azure storage accounts.

Warning: We recommended letting BackupAssist manage the space in the cloud backup container. This means not enabling (or turn off ) any space management or life-cycle tasks on your cloud backup containers. Leaving these tasks enabled will lead to parts of the backup’s data being permanently deleted, and result in the backups being incomplete and unusable in a recovery situation.

To create Amazon S3 cloud storage, go to https://aws.amazon.com/ and create an AWS account and an IAM (identity access management) account. The Cloud Backup job will create a container (called a bucket) for the backup job to use.

Creating an IAM account

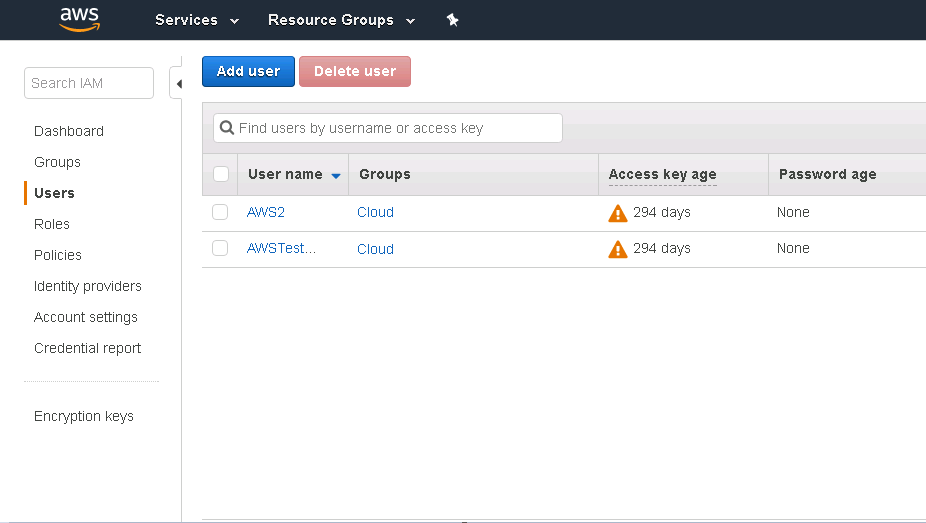

AWS backup user creation

  1. Log into the AWS web console.
  2. Select Services.
  3. Select IAM from the Security, Identity & Compliance.
  4. Select Users from the right menu.
  5. Select Add user.
    • Fill in the fields using the AWS documentation for guidance.
    • When prompted, select the Programmatic access AWS access type.
    • When defining access on the Set permissions page, the IAM user account will need sufficient access for the backup job to change data at the cloud storage destination. You can give the account the PowerUserAccess policy, or create you own custom policy with more restricted access.
    • When you create the account, an Access Key ID and Secret Access Key will be created. In this step, select the Download csv link to download a csv file containing the access keys. You will need to enter these keys when you create the backup job. Do not lose this csv file and keep it in a safe place.

You can create multiple IAM accounts within your Amazon AWS account, and use different IAM accounts for different backup jobs.To learn more, see the Amazon documentation, Creating an IAM User in Your AWS Account.

The Access Key ID and Secret Access Key are downloaded to a csv file when you create the IAM user account that the back job will use. Open this csv file when you create the backup job.

To learn more, see the Amazon guide here

Warning: We recommended letting BackupAssist manage the space in the cloud backup container. This means not enabling (or turn off ) any space management or life-cycle tasks on your cloud backup containers. Leaving these tasks enabled will lead to parts of the backup’s data being permanently deleted, and result in the backups being incomplete and unusable in a recovery situation.

An S3-compatible destination can be set up as a private cloud using server software like MinIO, or you can use a 3rd party cloud storage service like Wasabi. The server software or 3rd party service is used to create your cloud storage, and the settings used in BackupAssist are the same as those used for Amazon S3, except you will have an endpoint URL instead of a region.

To learn more about the options available, see the following resources:

Warning: We recommended letting BackupAssist manage the space in the cloud backup container. This means not enabling (or turn off ) any space management or life-cycle tasks on your cloud backup containers. Leaving these tasks enabled will lead to parts of the backup’s data being permanently deleted, and result in the backups being incomplete and unusable in a recovery situation.

Creating a cloud backup job

The following steps explain how to configure the Cloud destination settings within the backup job wizard when creating a System and Volume Backup or a File and Application Backup. Follow the steps in those pages for the end to end creation of a backulp job.

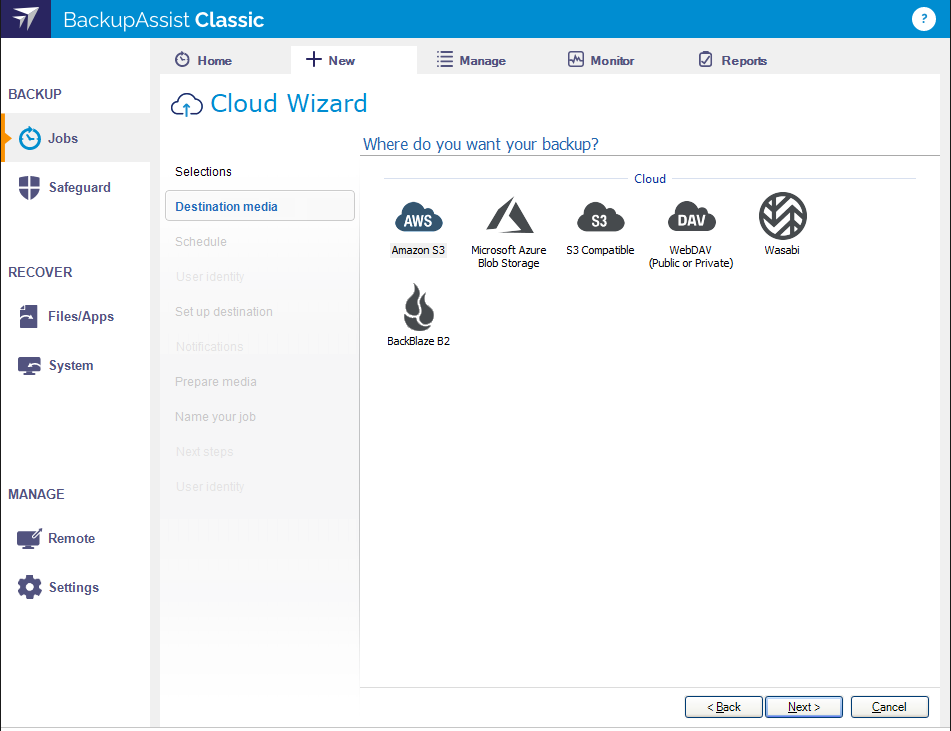

After selecting a cloud destination in the Destination media wizard step, and configuring the the schedule, you will be presented with the Set up destination step:

Set up destination.

    This step configures the cloud backup destination selected in an earlier step. There are different settings for Amazon S3, Microsoft Azure and S3 compatible destinations (such as Wasabi and BackBlaze).

    Warning: We recommended letting BackupAssist manage the space in the cloud backup container. This means not enabling (or turn off ) any space management or life-cycle tasks on your cloud backup containers. Leaving these tasks enabled will lead to parts of the backup’s data being permanently deleted, and result in the backups being incomplete and unusable in a recovery situation.

Note: If you like to create an immutable cloud backup, follow the additional instructions in cloud-immutability.

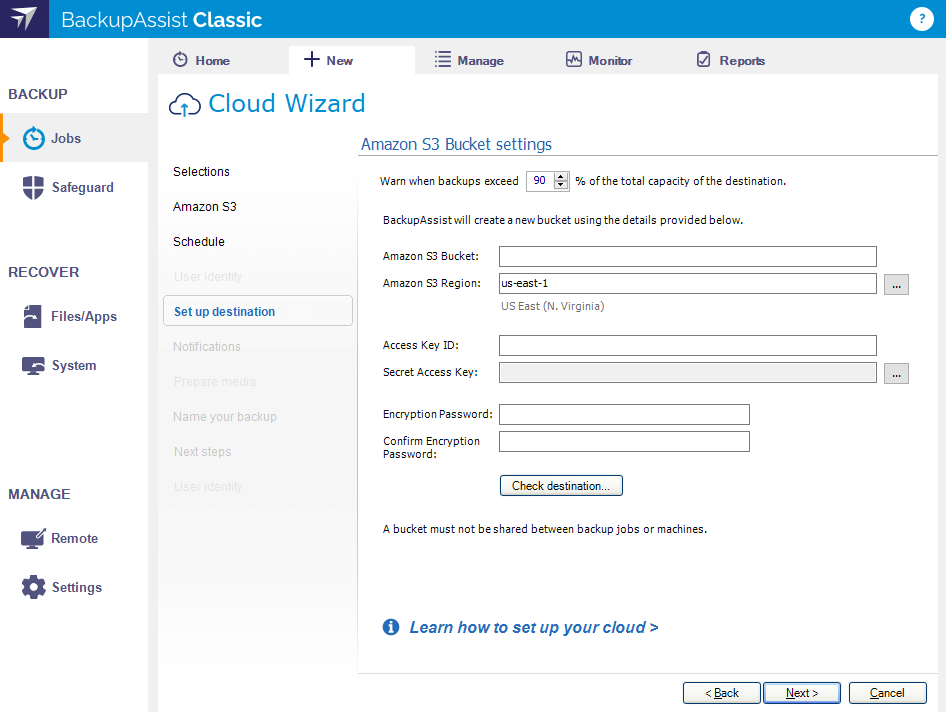

    Amazon S3 Bucket settings

    Fill in the S3 Bucket settings including the bucket name, and your Access Key ID and Secret Access Key.

    Set up destination AWSl

    • Amazon S3 bucket

      • Enter a name for your S3 bucket. BackupAssist will use this name to create the bucket. Provide a different name for each job, because a different bucket must be used by each backup job. This name must follow the conventions explained in Amazon's naming guide.

    • Amazon S3 Region

      • Select the region for the data center where you want your cloud storage to be based.

    • Access Key ID & Secret Access Key

      • For this step, you will need to open the csv file that you saved when you created the IAM user account that this job will use. This csv file contains the Access Key ID and Secret Access key.

      Copy these keys from the csv file to the fields provided.

      Note: The secret access key can only be retrieved when it is created, and must be securely stored for security reason.

    • Encryption Password

      • Cloud Backup uses encryption to protect your data. Enter and confirm an encryption password. This password will be needed if you perform a restore.

      Note: It is important that you keep a copy of your password in a safe place, as we cannot retrieve passwords if they are lost or forgotten.

      Note: If you like to create an immutable cloud backup, follow the additional instructions in cloud-immutability.

    • Check destination

      • Select the Check destination button. This important step uses the information provided to test the connection to the cloud destination, and then creates the cloud container that the backup job will use.

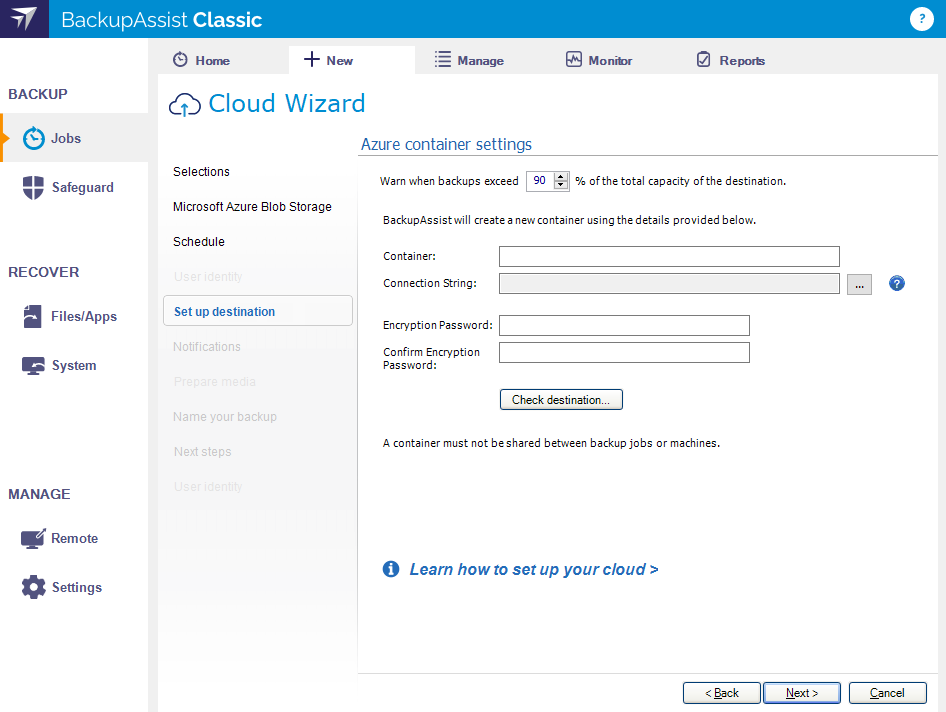

    Azure container settings

    Fill in the Azure container settings including the container name and connection string.

    Set up destination Azure

    • Container

      • Enter a name for your Azure container. BackupAssist will use this name to create the container. Provide a different name for each job, as a different container must be used by each backup job. This name must follow the conventions explained in the "Container Names" section in Microsoft's naming guide.

    • Connection string

      • Log into the Azure portal and, select the Storage account from the Resources list and select Access keys from the list of Settings. Under each key will be a Connection string. Use the copy button to select a Connection string from one of the key sections and Paste it into the field provided on BackupAssist's Set up destination screen.

      Azure connection string

      To learn more, see the Set up your cloud account section above or the Azure website.

    • Encryption Password

      • Cloud Backup uses encryption to protect your data. Enter and confirm an encryption password. This password will be needed if you perform a restore.

      Note: It is important that you keep a copy of your password in a safe place, as we cannot retrieve passwords if they are lost or forgotten.

      Note: If you like to create an immutable cloud backup, follow the additional instructions in cloud-immutability.

    • Check destination

      • Select the Check destination button. This important step uses the information provided to test the connection to the cloud destination, and then creates the cloud container (bucket) that the backup job will use.

      If you select Storage accounts from main menu and then name of the account you used, and then select Blobs on the right pane, you will see a blob inside the Storage account with the container name you specified.

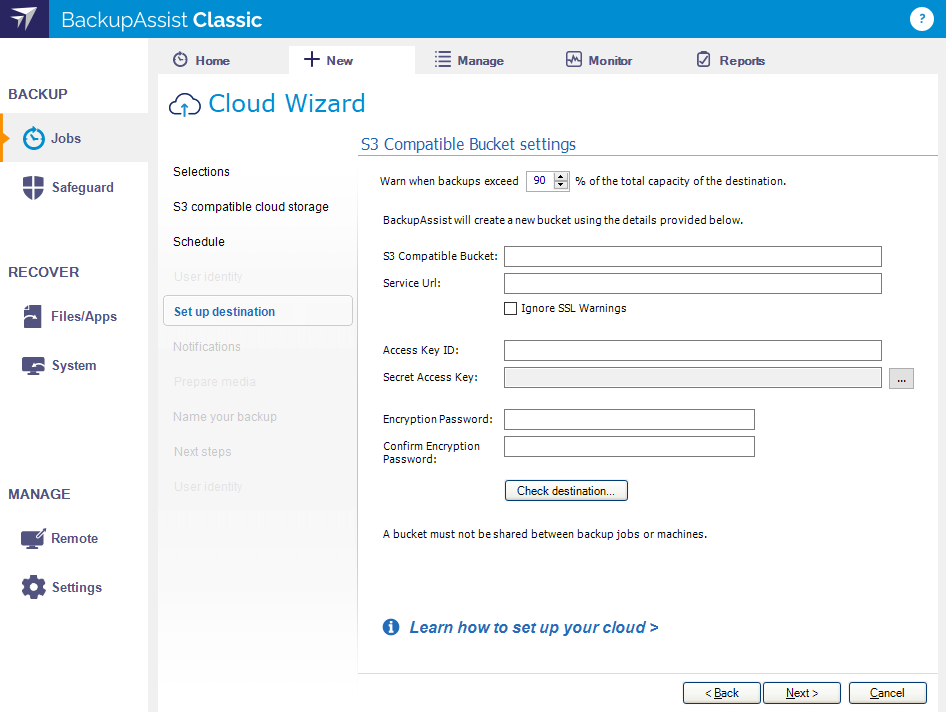

    S3 Compatible (incl. Wasabi and Backblaze) Bucket settings

    Fill in the S3 Compatible Bucket settings including the bucket name, and your Access Key ID and Secret Access Key.

    S-3 compatible storagel

    • S3 Compatible bucket

      • Enter a name for your S3 bucket. BackupAssist will use this name to create the bucket. Provide a different name for each job because each job will use its own bucket. This name needs to be unique and can only use lower-case characters, numbers, periods and dashes.

    • Service Url

      • This is the URL endpoint that BackupAssist will use to access the cloud storage. If you are using an S3-compatible service provider, the URL will be available from your provider and may be region-specific. If you set up your own S3-compatible storage, you may have configured this URL when creating the storage, or you may need to refer to the product documentation.

    • Ignore SSL warnings

      • Select this option if you are using an https URL for a private cloud destination with self-signed certificates, rather than a trusted certificate. For example, when using a NAS device, this option will allow you to back up to the device in spite of any SSL errors.

      Note: This option is not intended for use with public cloud provider destinations.

    • Access Key ID & Secret Access Key

      • Enter the keys for the IAM account that you want BackupAssist to use for this job. Please refer to the relevant service provider's documentation or the S3 server software to extract these keys.

    • Encryption Password

      • Cloud Backup uses encryption to protect your data. Enter and confirm an encryption password. This password will be needed if you perform a restore.

      Note: It is important that you keep a copy of your password in a safe place, as we cannot retrieve passwords if they are lost or forgotten.

      Note: If you like to create an immutable cloud backup, follow the additional instructions in cloud-immutability.

    • Check destination

      • Select the Check destination button. This important step uses the information provided to test the connection to the cloud destination, and then creates the cloud container that the backup job will use.

Cloud Backup restores

Perform a restore from a Cloud Backup as you would for any other backup type. Simply select the Files& Apps tab, select the required restore option and follow the steps. To learn more, see Files & Apps tab

When performing a restore from a Cloud Backup, you will be prompted to enter the password used to encrypt the backup when you select the Restore button.

Bare Metal Recovery with Cloud Backups

Perform a Bare Metal Recovery or VM Instant Boot from a Cloud Backup by selecting the System tab Home menu and selecting Download BMR backup. Once the download of the BMR capable backup is complete, a set of VHDX backup files are created and can be used to carry out BMR or VM Instant Boot.Files & Apps tab
