System Protection for Hyper-V

When stored in a Cluster Share Volume (CSV), a virtual machine’s files (virtual disks and configuration files) present as a shared resource between the hosts. As the CSV’s files are shared, access to the virtual machine’s files must be coordinated so only the one host accesses a virtual machine’s files at a time.

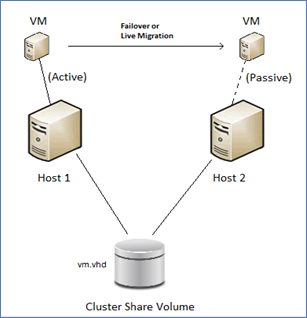

Two hosts in a CSV cluster

This diagram depicts a configuration with a small cluster of two hosts with a single virtual machine, which may fail-over at any time from Host 1 to 2. This virtual machine will only be active on a single host at any time - referred to as the active node. The other node is called the passive node. Other virtual machines added to the cluster may be active on either host at any point in time.

Backuping up a CSV environment:

Because a backup of a CSV must be coordinated, the BackupAssist jobs on each host must have their start times staggered. The scheduled start time of the jobs on each host must be set at least 5 minutes apart. This will allow BackupAssist time to initialize and coordinate its access to the CSV. BackupAssist will automatically delay the second job so that it will not commence until the first job has completed.

During a System Protection backup, the host and all guests are copied to an intermediate staging disk. The intermediate staging disk must be a local disk and it is overwritten each time a backup is run.

• BackupAssist v7 supports Hyper-V CSV on both Windows Server 2008R2 and 2012 machines.
• When a fail-over or migration occurs, one or more of the virtual machines will no longer be active on the original host. Therefore, BackupAssist must be installed and licensed on each host.
• A backup job must be created on each of the hosts to back up all virtual machines which are active on that host (at the time the backup runs). This can be done by selecting the entire Hyper-V VSS object for each job, which automatically finds active virtual machines at the time the backup runs.

Restoring to a CSV environment

When a guest is successfully restored to a Hyper-V cluster (CSV), it will become available on the Hyper-V machine that it was restored to.

• If the restore replaces the existing guest, the CSV settings will be retained and the guest will be added back to the cluster.
• If the restore does not replace the existing guest, the CSV setting will need to be manually configured to add the guest to the cluster.

This affects Hyper-V CSV implementations on Windows 2008/ 2008R2 / 2012.

Note

• The Hyper-V Granular Restore Console does not support mounting image backups (VHD files) that were backed up off a CSV.
• Windows Server 2012 R2 does not support CSV environments.

Before creating a backup job, it is important to understand what backup and restore options are available. This section provides guidance on some key considerations.

Exchange VM Detection

If your backup job contains a Hyper-V guest with an Exchange Server, the authentication information for that guest should be entered into the Exchange VM Detection tab on the Selection screen when you create the backup job. With these credentials, BackupAssist can detect what guests have an Exchange Server, and list the EDB file available for each guest when you perform a restore using the Exchange Granular Restore console.

The Exchange VM Detection tab will appear when the Hyper-V role is installed and running on the server. If you are backing up multiple Exchange guests, each one should have the same username and password.

The Hyper-V process is automated but the restore requires both the Exchange Granular Restore Add-on and the Hyper-V Granular Restore Add-on licenses.

VSS Application backups

The Volume Shadow Copy Service (VSS) is a Microsoft Windows Service that creates a copy of an application's data so the data can be backed up while the application is running. This means the data will not change or be locked while a backup is taking place. VSS also supports live application restores, so you do not need to stop an application before restoring a previous version of it.

BackupAssist is VSS-aware, so File Protection, File Archiving and System Protection backups can detect VSS applications such as Exchange, SQL, Hyper-V and SharePoint. BackupAssist will display a VSS application directory as a green application container during the Destination step of the backup job's creation. You can select the container or individual components and BackupAssist will select the files that need to be backed up.

In some cases, only applications that are running will be detected. If an application is not listed, try re-starting the application and the VSS service it then click the Refresh button in BackupAssist.

For Windows Small Business Server 2003, a registry entry modification is needed to see an Exchange Server. See our online blog post, Backing up Exchange with SBS 2003, for more information.

Restore vs. Recovery

A restore is the process of accessing a backup and restoring it to the original (or a new) location, if your data is lost, corrupted or if you want an earlier version of that data. However, if your computer cannot start itself, you may need to perform a recovery.

A recovery is the process by which a computer is recovered after hardware has been replaced or an operating system failure has occurred, and your computer can no longer start itself. To perform a recovery you need a bootable media to start your computer, and an image backup that the bootable media can use to recover your operating system, data and applications.

System Protection can create the image backup used in the recovery process. It can also create an image backup to protect data and applications so they can be restored onto a functioning computer (as explained in this whitepaper). These two capabilities make System Protection a powerful and versatile backup technology. It is important to understand the difference between restore and recover so that both solutions can be implemented effectively.

The Recovery using a System Protection backup section of this whitepaper, explains how a System Protection image backup is used in the recovery process.

For more information on data recovery, see the Recover tab & RecoverAssist Whitepaper.

Data containers

BackupAssist System Protection creates image backups that can be used to restore and recover your data. These backups can be full or incremental, and the Windows Volume Shadow copy Service (VSS) maintains historical information so that each backup can be restored from.

• If you have Windows VSS on the data source, data can be backed up incrementally.
• Incremental backups overwrite the data in the image backup that has changed.
• Windows can create shadow copies (snapshots) of the data that was changed.
• Data that was overwritten by previous backups can be restored using a VSS snapshot.

On RDX drives and network destinations (e.g. NAS), shadow copies are not supported so Windows cannot maintain a backup history (snapshots of data that changed). This means restores can only be done from the last backup. A work around has been to put each backup into a different folder but this requires a full back up each time the backup jobs runs, which requires additional disk space

• Windows VSS cannot maintain historical information (snapshots) on a NAS or RDX device
• Data can only be restored from the last backup.

BackupAssist overcomes these Network / RDX image backup limitations by implementing Data containers. A Data container is a VHD file that System Protection backups can be stored inside of. The Data container is created on the destination media and each time the backup jobs runs, the container is mounted and treated as a local disk. Because the Data container is seen as a local disk, Windows can maintain shadow copies of data that changed (was overwritten), so that it can still be restored from.

When using a Data container for System Protection backups to NAS and RDX destinations:

• Data (in the backup) that has changed can still be restored, because snapshots are maintained
• Folders are not needed to provide different restore points, saving valuable disk space and time.

RDX granular restore: When Windows detects an RDX drive, it will compress the data that is being backed up. This compression means that individual files cannot be restored. By using a Data container, Windows will see the destination as a local drive and not compress the data. BackupAssist will therefore be able to restore individual files from an image backup stored on an RDX drive.

Portable backups: Enable portable backups for RDX, Network location, External disk and Local drive destinations. On Windows Server 2008R2 and later, you can copy a backup image to another device, but only the last backup can be restored because you cannot copy the shadow copy (snapshot). If the backup is in a Data container, the snapshot can be moved and all backups can be restored from.

Supported Systems

Data containers are supported on Window Server 2008 R1/R2 and SBS 2008/2011 and later operating systems.

Windows Server 2012

Failover cluster and CSV

Windows Server 2012 introduces the CSVFS format, which allows a cluster to differentiate CSV storage from other NTFS storage. BackupAssist supports backing up Hyper-V guests located on CSV storage using the CSVFS file system.

• BackupAssist supports SMB 3.0 servers as a CSVFS backup destination.
• Bit Locker drive encryption is not supported.
• BackupAssist does not support backups of files from both CSVFS and NTFS locations in the same snapshot. For example, it is not possible to back up a Hyper-V guest with a source in a CSV along with another guest that is on an NTFS volume.

Hyper-V

Hyper-V is Microsoft’s implementation of virtual machine (VM) technology. Virtual machines run on a physical host machine and provide dedicated operating system environments.

• Hyper-V Replica: Hype-V Replica enables replication of a virtual machine across the internet. BackupAssist supports Hyper-V Replica and can back up and restore a primary Hyper-V guest using any backup type.
• CSV Environments: CSV backups are supported by System Protection, File Protection and File Archiving backup types, but CSVFS and NTFS file systems cannot be mixed (as described above).

Windows SystemState

Overview

In previous versions of BackupAssist, Windows SystemState was called System State and it was available during the creation of a backup job. The Windows SystemState option is now selected by editing a backup job after it has been created. There are exceptions, as shown in the table below.

A Windows SystemState backup contains some of the important files, registry values and settings that are used by the Windows operating system. It does NOT back up the operating system itself. This means a Windows SystemState backup can be used to restore the settings your computer had at an earlier point in time, but it will not allow you to recover your computer. A Windows SystemState backup can be helpful if your computer is encountering errors and you want to restore your settings to an earlier point in time, before the errors occurred.

Because Windows SystemState requires a functioning computer, and can only restore Windows settings, we recommended that a bare-metal backup is used. A bare-metal backup can restore Windows SystemState data, and it can ALSO be used to perform a recovery of your computer, when used with a Windows recovery environment, like RecoverAssist.

Selecting Windows SystemState

Windows SystemState can be selected after a backup job has been created, if you have enabled the Windows settings. The exceptions, considerations and steps required are explained below:

This table shows what backup jobs can include Windows SystemState.

To enable Windows SystemState :

1. Select the BackupAssist Settings tab.

2. Select Windows settings.

3. Tick Enable v6 compatible Windows SystemState selection.

Backup jobs created in earlier versions of BackupAssist (that included System State) will have the setting enabled by default in BackupAssist v7.

Zip-to-tape backup jobs will not need to enable this setting, to select Windows SystemState.

To select Windows SystemState :

1. Select the BackupAssist Backup tab, and then the Manage menu.

2. Select the backup job that you want to modify, and then Edit from the menu.

3. Select Files and applications from the left pane.

4. Select Windows SystemState at the top of the data selection pane.

When creating a backup job, there are some global settings that should be configured in BackupAssist. If they are not configured, you will be prompted to complete them during the creation of your first backup. It is recommended that this is done in advance.

BackupAssist's settings can be entered and modified using the selections available in the Settings tab. Clicking on the Settings tab will display the selections as icons. Four of these are used when creating new a backup job and each one is described below:

Backup user identify

Backup jobs require an administrator account with read access to the data source, and full read-write access to the backup's destination. It is recommended that a dedicated backup account is created for this purpose. The account's details are entered using this menu item, and your backup jobs will be launched using these credentials. The account's permissions will be validated both when the backup user identity is entered and when the job is executed. If no account is specified or the account has insufficient permissions, the backup job will fail and note the error in the backup report.

A video explaining the creation of a backup user identity can be found on our, Videos Webpage.

Email server settings

This menu item is used to enter the details of the SMTP server used by BackupAssist to send email notifications. The SMTP server must be configured if you want to have an email Notifications step included when you create a backup job.

Email address list

This menu item is used to define and store the email addresses of potential notification recipients. The list will be used to populate the recipient selection screen when configuring an email notification for a backup job. Any email addresses entered during the creation of a new notification are automatically added to the Email address list.

Network paths

This option allows you to enter access credentials for networks, domains and drives that the default account (specified in the Backup user identify) does not have access to. Enter or browse to the location and add it to the Path list. The Edit option will allow you to enter an authentication account, specifically for that path. When you create a backup job to a remote location, that location will be automatically added here.

Having multiple connections to a resource using the same logon credentials can generate a Windows error, such as the BA260 NAS error. It is therefore recommended that you avoid having mapped shares on the computer running BackupAssist that are the same as the paths configured in BackupAssist.

Windows Settings

System Protection creates a full image backup the first time it runs to a destination, but further backups will usually be incremental. This is achieved by scanning and comparing the data to be backed up and the data in the destination image to see what data changed, and only the data that has changed will be updated.

Scanning can take some time, but can be avoided by enabling “incremental reading” using the option under the Setting tab > Windows Settings > Enable Incremental Windows Image backups.

The following instructions describe how to back up Hyper-V environments using System Protection.

File Archiving and File Protection backups can also detect and back up Hyper-V environments but they do not granular restores of guests or full recoveries of Hyper-V servers.

Launch BackupAssist and follow the steps outlined below:

1. Select the Backup tab, and click Create a new backup Job

2. Select System Protection

If this is the first time you have created a backup job, you will be asked to provide a Backup user identity if one has not been defined. See the section above, BackupAssist settings, for guidance.

3. Selections: The selections screen is used to select the Hyper-V environments to be backed up.

An Exchange VM Detection tab will be available if you are backing up an Exchange VM guest. To learn more about this feature, see the Backup Considerations section.

All Hyper-V environments detected will be displayed here as application containers. The example below is of a CSV environment, so there is also a CSV tab.

Files and Applications tab.

Select the Hyper-V environments to be backed up. You can also select the Back up Entire System option to create a backup that can be used for a system recovery.

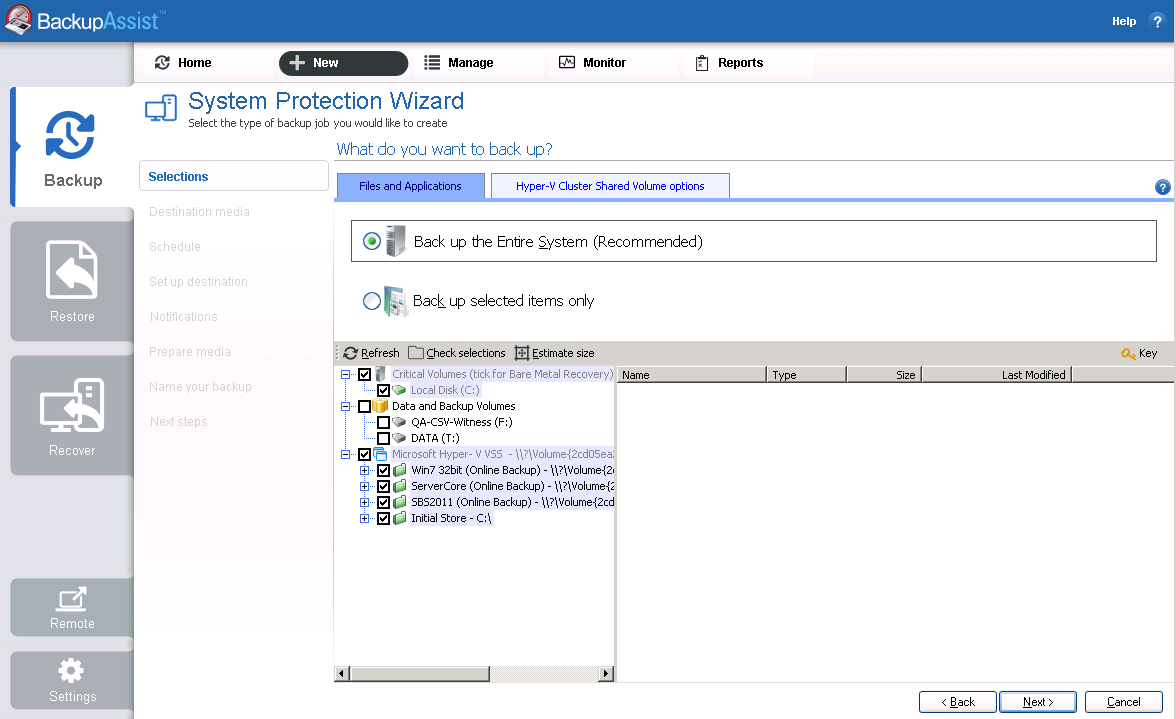

BackupAssist Hyper-V backup - Selections screen

• For a non-clustered host: Select Next and you will be taken to the Destination media step.
• For a clustered host: Select Next to proceed to the Hyper-V Cluster Shared Volumes tab.

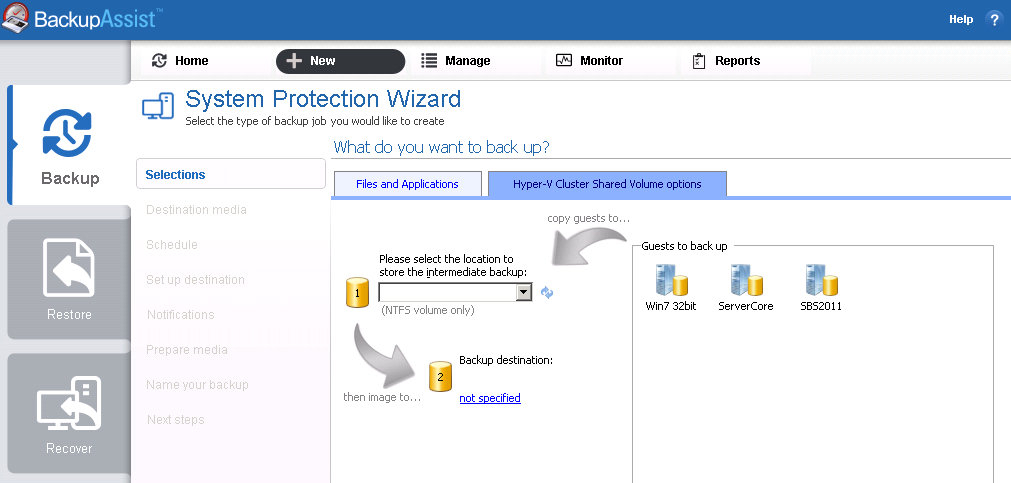

Hyper-V Clustered Shared Volume options tab.

If you are creating a Hyper-V backup job for a shared clustered volume, then this tab will need to be completed. This step only applies to System Protection, Hyper-V backups using CSV. The tab will not appear in non-clustered environments.

The Hyper-V Cluster Shared Volume tab graphically shows the guests selected, and a field to select the intermediate backup location.

The intermediate backup is used to copy the host and guest data to a single location. This is also known as the staging disk. An image backup will then be made. The image is of the host, and within that image, is an image of each guest residing on the host.

• The intermediate backup's location must be a local disk.
• The intermediate backup's disk is overwritten each time a backup is run.
• The image backup is taken from the whole disk.

Enter the drive to be used for the intermediate backup, and click Next.

Hyper-V intermediate (staging) disk selection

4. Destination media: The destination screen is used to select the type of media that you want to back your data up to. This step's name will change to the media type selected, when you click next.

The Enable Data container, option is available for the following destinations: RDX drive, Local hard drive, Network location and External disk. A Data container is a file that the backups will be stored inside of. The Data container is created on the destination media and each time the backup jobs runs, the container is mounted and treated as a local disk.

Note: System Protection backups on RDX drives cannot be used to restore individual files unless Data containers are used. This applies to Windows Server 2008R2 and later.

Select a device for your backup destination, and click Next.

5. Schedule: This screen is used to select when and how you would like the backup job to run, and how long you would like the backup to be retained for. A selection of pre-configured schedules, called schemes, will be displayed.

• The schemes available will depend on the type of destination media selected in step 4.
• Clicking on a scheme will display information about the schedule used.
• The schedule can be customized after the backup job has been created.

Select an appropriate scheme, and click Next.

6. Set up destination: This screen is used to configure the location of the media selected in step 4.

• The options presented will change with the type of media selected.
• If your media is removable, you can set the media to eject after the backup job has finished.

If your destination is a Data container, the container size and location is set using this screen.

• You will need to provide the destination path, the location where the Data container will be created.
• For an RDX or External disk destination, Use all available space will be selected by default. It is important to review this setting to ensure it is appropriate.
• For a Local hard drive and Network location, set the size manually by using the field provided, or select the Use all available space option.
• The size of a Data container cannot be changed once the backup job has run.
• The Use all available space selection will use all available space, up to 2TB.

Configure your backup destination, and click Next.

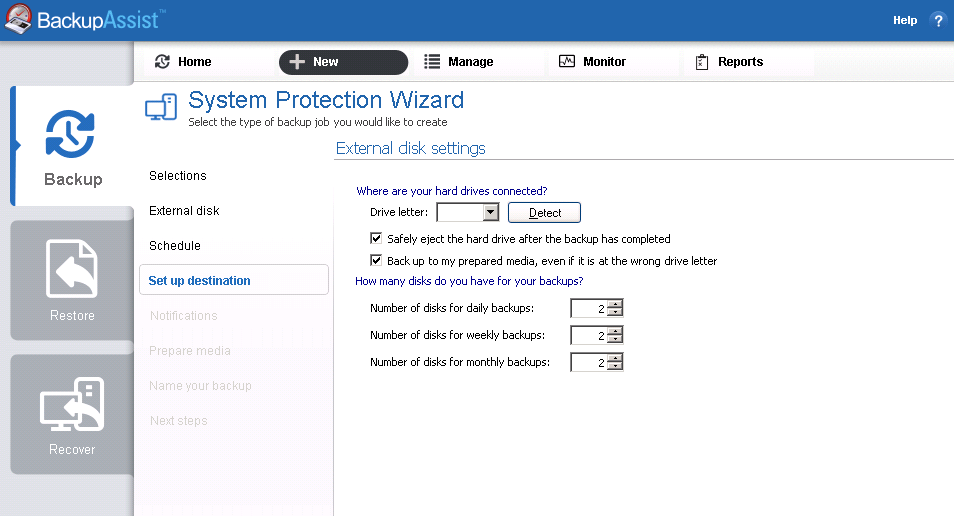

System Protection for Hyper-V - Set up destination configuration

Mail Server: If you have not configured an SMTP mail server for BackupAssist, you will be prompted to provide those details after the backup destination step has been completed. See the BackupAssist settings section.

7. Notifications: Once a backup job has completed, BackupAssist can send an email to inform selected recipients of the result. This email notification can be enabled during the creation of a backup job, if the mail server has been configured.

To enable email notifications:

a. Select, Add an email report notification.

b. Enter recipients into the Send reports to this email address field.

c. Enter recipients into the Also send reports to this email address field. You can then select the condition under which the email should be sent, using the drop-down box.

After the backup job has been created, you can modify the notifications by adding and removing recipients, setting additional notification conditions and including print and file notification types.

To learn more about notification options, see the BackupAssist Backup tab whitepaper.

8. Prepare media: If you selected a portable media device as your backup destination (such as an RDX drive or an external drive) you will be given the option to prepare the media for BackupAssist. BackupAssist will write a label onto the media so that it can recognise what media has been attached, and determine if it is the correct media for your backup schedule.

To enable media detection:

a. Select, Let BackupAssist keep track of your media.

b. Select what you would like BackupAssist to do, if the wrong media is inserted.

c. Select what you would like BackupAssist to do, if new or unrecognized media is inserted.

BackupAssist will display all removable media that are currently attached, along with a text field and drive designation drop-down box, which can be used to provide a label for the media.

To prepare your media:

d. Enter the name and drive designation to be used for each media device listed.

e. Select Prepare for each media device listed.

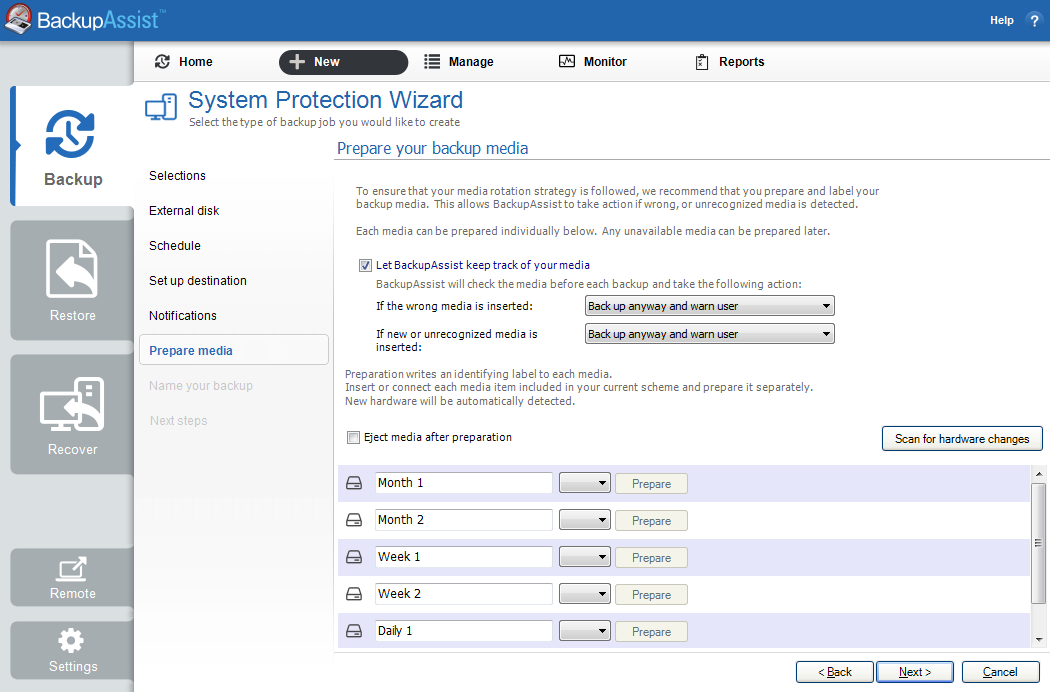

System Protection for Hyper-V - removable media preparation

BackupAssist will write the label to the media so that it is able to recognize the media and ensure that the correct media is being used on the correct day.

9. Name your backup: Provide a name for your backup job, and click Finish.

10. Next Steps: If you are creating a backup of your entire system for use in a recovery, you can use this option to launch the RecoverAssist builder and create and bootable recovery media.

Your System Protection for Hyper-V backup job has now been created.

Important: Once a backup job has been created, it should be reviewed and run using the Manage menu. This menu provides additional options to configure your backup. See the section, Hyper-V backup management, for more information.

Important : Once a backup job has been run and a backup created, a MANUAL test restore should be performed to ensure the backup is working as intended. To perform a test restore, refer to the section , Restoring a Hyper-V backup.

Important: Hyper-V Granular Restore does not support mounting image backups that were backed up off a CSV

This section provides instructions on how to restore files from within a guest or host (granular) or an entire guest or host environment using a System Protection backup image.

A System Protection backup image can be used by two different restore tools:

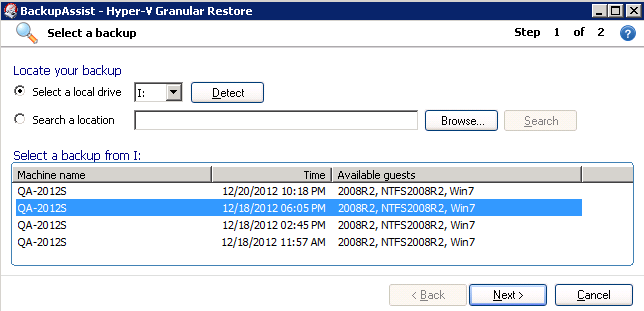

• The Hyper-V Granular Restore tool, which can restore files from within a guest (virtual machine).
• The Restore Console, which can restore a guest image and files from within a host.

When performing a restore, the steps required to locate the backup are the same for both restore tools. This section explains how to locate the backup and is followed by sections explaining how to use the Restore console and how to use the Hyper-V Granular Restore tool, to restore from the backup.

To restore Hyper-V data from a System Protection backup, start BackupAssist and follow these steps:

1. Select the Restore tab

The Restore tab has a Home page and a Tools menu. The Home page is the default screen and the recommended starting point for performing a restore.

2. Select Hyper-V from the Home page.

3. The Home page will now display all backups that contain Hyper-V data.

Hyper-V image backups will be displayed twice for each backup location. First in a group with the prefix Entire - associated to the Restore Console tool, and then in a group with the prefix, File - associated to the Hyper-V Granular Restore tool.

Select the Restore console - to restore a guest (virtual machine) or files from within the host - and go to the section below, Hyper-V Guest & Host files restore.

Select the Hyper-V tool - to restore individual files from a guest (virtual machine) - and go to the section below, Hyper-V granular restore.

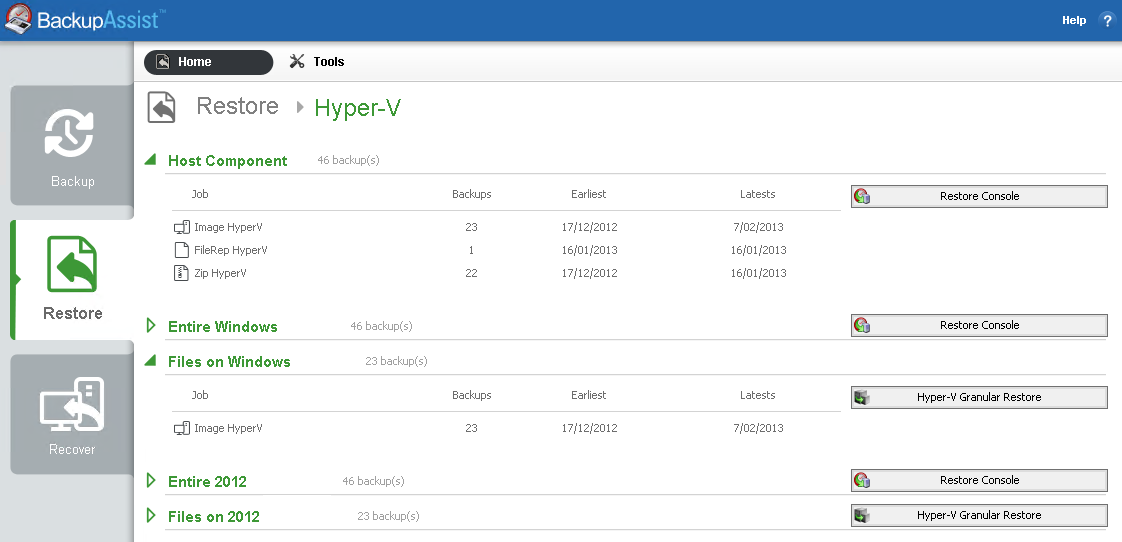

BackupAssist Restore screen - restore tool selection

Hyper-V guest & host files restore

The following section explains how to use the BackupAssist Restore Console, to restore a guest (virtual machine) or files from within a Hyper-V host using a System Protection image backup.

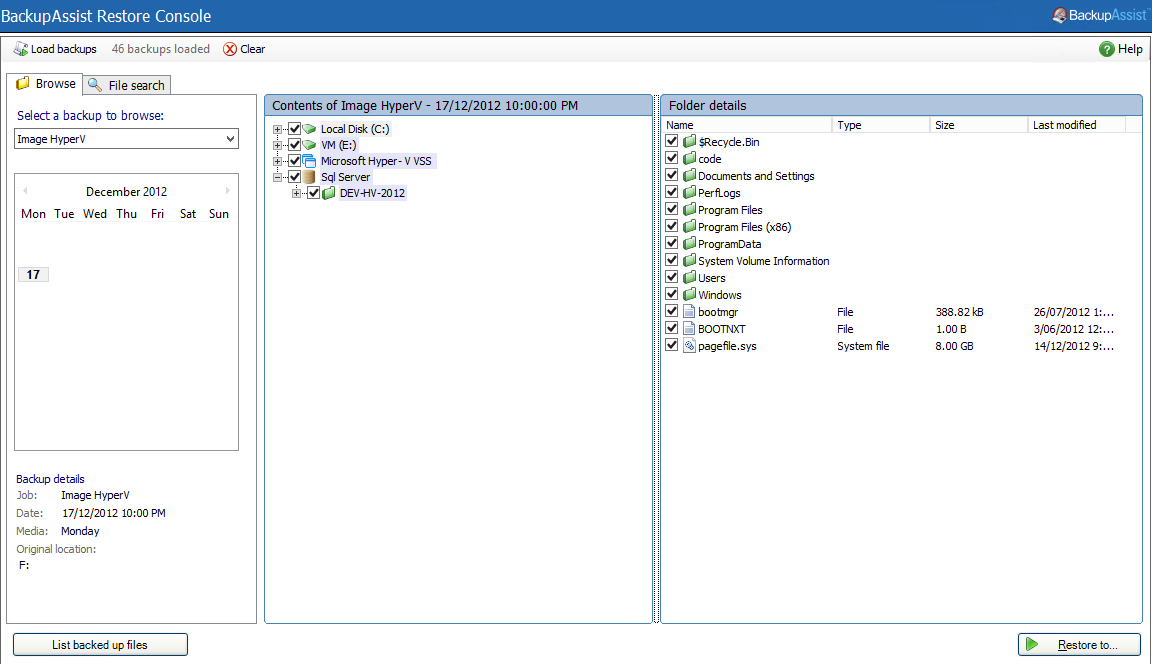

4. Restore console - backup and data selection

The Restore Console will open and load all of the backups that were listed on the Home page. The next step is to locate the data you want to restore, from the loaded backups.

The Restore Console provides two tools to locate your data:

• The Browse tab. Select this tab if you know the backup and date you wish to restore from, or if you need to restore an entire backup set.

a. Use the drop-down menu to choose the backup that you want to restore from.

b. Use the calendar to select the date you want to restore from.

c. Use the middle panes to expand the backup set.

d. Select the data to restore.

e. Click Restore to at the bottom right of the window.

• The Search tab. Select this tab to search all of the loaded backups for the data you want to restore. You can display data filtered by name, date, size and type, for all backups. The results can be compared (e.g. the dates of two files) to identify the correct data selection.

a. Enter your search term (The search accepts wild card searches, such as *.log or *.doc).

b. Select a filter/s if required.

c. Click the Search button.

d. Select the data to restore.

e. Click Restore to at the bottom right of the window.

BackupAssist Restore Console - backup and data selection

If the backup is not present, or if you wish to load additional backups, select the Load backups option. Click Load all known backups to load all backup catalogues.

5. Restore console - restore destination selection

When you select Restore to, a window will open showing the Backup location, the Restore to destination and the Restore options.

a. Review Backup location: Change the selection if the backup was moved after it was created.

b. Review Restore to: Leave the Original location selected or chose an Alternative path.

Restoring to an alternate location will use a minimal path. For example, restoring a single file to an alternate location will copy the file to the location without re-creating the original folder structure.

c. Review the Restore options:

• Select one of the following: Overwrite all existing files, Do not overwrite existing files or Only overwrite older files.
• The option, Restore NTFS security attributes will be selected by default.

d. Selecting Create a log file listing all processed files, will create a file that lists the success or failure of each file. The log is opened by selecting the log file’s link in the backup report.

e. Queue all backup jobs when a restore is running, is selected by default.

f. Click the Restore button to restore your data.

If BackupAssist cannot access the backup location you will be prompted to either connect the appropriate media or specify an alternate location where the backup can be found.

The restore will run from the destination window and a Report link will appear once the restore has finished.

g. Select Done.

Your Hyper-V restore has now been completed.

Important: Only backups made with BackupAssist v5.3 or later will show up in the Restore Console.

Important Refer to the Restoring to a CSV environment section (under Hyper-V Custer Shared Volume), if you are restoring a guest to a CSV.

Hyper-V granular restore

The following section explains how to use the Hyper-V Granular Restore tool, to restore individual files from within a guest (virtual machine) using an image backup.

The BackupAssist Hyper-V Granular Restore tool will only run on 64-bit Window 2008 / 2012 Servers or a standalone Hyper-V Server. The machine must also have the Hyper-V role, which can be added to most Windows 2008 / 2012 Servers, and is the default for a Hyper-V Server.

Hyper-V Granular Restore does not support mounting image (VHD) backups that were backed up off a CSV.

1. Select, Hyper-V Granular Restore

The tool will launch the BackupAssist Image mounting tool, which will open the Hyper-V Granular Restore console. The console is used to locate the image backup.

2. Locate your backup

Select a local drive that contains your System Protection VHD backup (Press Detect if the image does not display), or select Search a location and use the Browse or Search functions to locate your VHD backups.

Once the backups have been located, a list of VHD files will be displayed:

• The Time column can be used to help determine what backup to select.
• The Available guests column can be used to see what guests are inside the image backup.

BackupAssist disk mounting tool - detected Hyper-V backups

3. Select the host image to restore from, and click Next.

You will be presented with the Mount volumes screen, as shown in Figure 11 below. The Mount Volumes screen is used to select the guest, within the VHD backup, that you want to restore data from.

4. Select the guest image, using the drop down list. The guest will appear as a selected item.

5. Select the drive letter to mount the guest image as.

6. Select the appropriate action from the drop down list.

• Option 1 -Mount selected volumes to drive letter.
• Option 2 -Export volumes as VHD files.

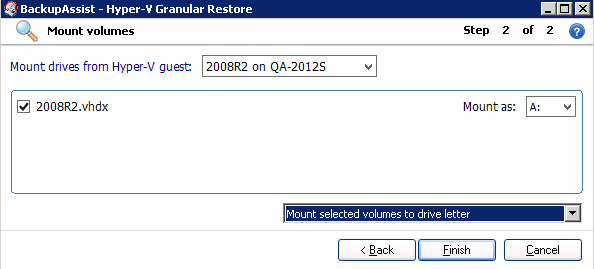

Selecting guest image to mount

7. Option 1 -Mount selected volumes to drive letter.

· The Mounting Disk progress bar will be displayed until the image is mounted.

· If there are two partitions, you will be asked to select which one.

Once the guest VHD is mounted, a new drive will appear on your computer with the drive letter specified on the guest selection screen.

a. Open Windows Explorer to view the contents of the image.

b. Copy the files and folders you want to restore (from the mounted VHD file) to a network location that the guest machine can access.

c. Once you have finished copying data to a network location, you can then copy it back to the original guest machine.

d. Once your data restoration is complete, click Unmount in the Hyper-V Granular Restore Console, and click Done.

Option 2 -Export volumes as VHD files.

Use this option if you would like to mount the image on another machine.

a. Set the location that you would like to export the VHD files to in the field located at the bottom right corner.

b. Click Finish to export the selected guest image.

A new drive will appear on the selected machine using the letter specified. Open Windows Explorer to view the contents of the image and follow the steps in option 1.

Quick recovery from staging disk

When a backup of a Hyper-V in a CSV environment is created, an intermediate staging disc is used to create the image backup. If the guest VM needs to be recovered (or its image backup is rendered unusable) the intermediate staging disc and be used to recover the guest. Configure a new guest using the staging disk and the virtual machine will be operational again with minimal data loss. When you are ready to perform a migration back to the server, the differencing VHD stored on the staging disk along with the last back up from the staging disk can be merged together and installed on the server.

Once you have created a backup job, you can modify the settings and access advanced configuration options using the management screen.

To access the backup management screen:

1. Select the BackupAssist, Backup tab.

2. Select Manage from the top menu. A list of all backup jobs will be displayed.

3. Select the backup job you want to modify, and select Edit.

4. Select the required configuration item on the left. Key configurations are described below.

To learn more about the backup management options, see the Backup tab whitepaper.

Manually running a backup job

All new and modified backup jobs should be manually run to ensure they work as intended.

1. Select the backup job, and select Run.

2. You will be prompted to Rerun a past backup or to Run a future backup now.

3. When the backup job starts, the screen will change to the Monitor view.

4. Once the backup has been completed, select the Report button and review the results.

Scheduling

Selecting Scheduling will display the Scheduling options. You can use this screen to change the default time and days of your scheme's daily backups. If you selected a scheme with archive backups (e.g. weekly, monthly), you can specify when each archive backup will run. Some backup types will have additional configuration options. The current scheme is shown, along with two pop-up menus: Select a new schedule and Customize schedule.

Select a new Schedule: This will display the pre-configured backup schemes that you chose from during the creation of your backup job. You can select a different scheme using this option.

Customize schedule: This selection can be used to modify each backup within your current schedule. The customizations available will depend on the type of backup and the type of backup media used.

For additional information on Scheduling, please refer to the whitepaper for the type of backup you are using (e.g. System Protection), and the Scheduling screen, please refer to the Backup tab whitepaper.

Files and applications

File and applications tab : A new System Protection backup job will back up an entire disk or application. However, under the Files and applications menu item, you can modify your backup job by selecting specific files and folders, or individual components within a VSS application.

Hyper-V Shared cluster volume options tab: Changes the intermediate (staging disk) backup location.

Exclusions tab: This is an additional tab where certain file types can be excluded from the backup. The exclusions can be applied to selected locations within the backup job. Use the add button to enter a file type and the location to apply the exclusion to. Pre-defined exclusions can also be added.

Best practice backup standards require you to document the configurations of every important server so you can recreate or reconfigure it in the event of a major disaster. With Hyper-V, if you need to migrate a guest machine from one host to another, or restore a guest to a new host, you need the configuration settings of the relevant guest(s) so you can manually create new guest machines that match the original configuration.

To fully document the setup of a Hyper-V Server, you need to include the setup of each guest machine and the configuration of the host. The BackupAssist Hyper-V Config Reporter (included with the Hyper-V Granular Restore Add-on ) simplifies and automates this task by creating an HTML report of the configuration settings for each Hyper-V guest VM, and the Hyper-V host settings. The report contains everything needed to recreate the host, migrate a guest from one host to another, or restore a guest to a new host.

Note: System Protection backup reports contain a Recovery options section, which explains the BIOS, EFI and Hyper-V guest recovery options available for each System Protection backup.

To generate a report using the Hyper-V Config Reporter:

1. Run the Hyper-V Config Reporter from the Windows Start Menu on the Hyper-V host machine.

The Hyper-V Config Reporter will display a list of guests configured on the Hyper-V host.

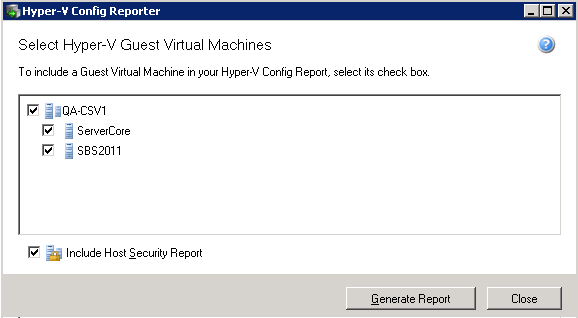

Hyper-V Config Reporter - guest selection

2. To generate a report of your guest VM settings, select the individual guest from the list that you want, and click Generate Report.

Check Include Host Security Report if you want the report to include security and access settings that have been configured on the actual Hyper-V host.

3. A HTML report will then be created and displayed in a new window.

You can use the buttons at the top of the Hyper-V Config Reporter window to either print a copy of the report, save the report to a HTML file that can be opened with a web browser, or close the report window.

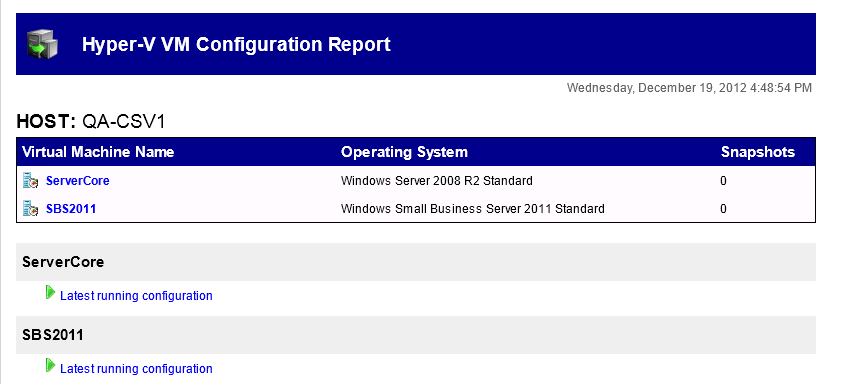

At the top of the report, as shown below, is a list of all the guest VMs selected during the previous step. If you click the Virtual Machine Name link of any guest in the list you will be directed to a list of settings for the latest running configuration for that guest VM.

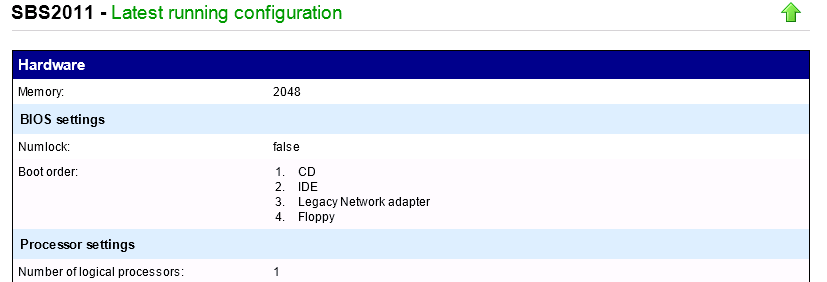

Under the list are details of each VM and its associated snapshots. You can click the link for any available snapshot to view the specific settings associated with that snapshot. Each VM included in the report will contain a full description of the VM settings for the latest running configuration at the top, and then a list of any further snapshots available underneath that, in date order.

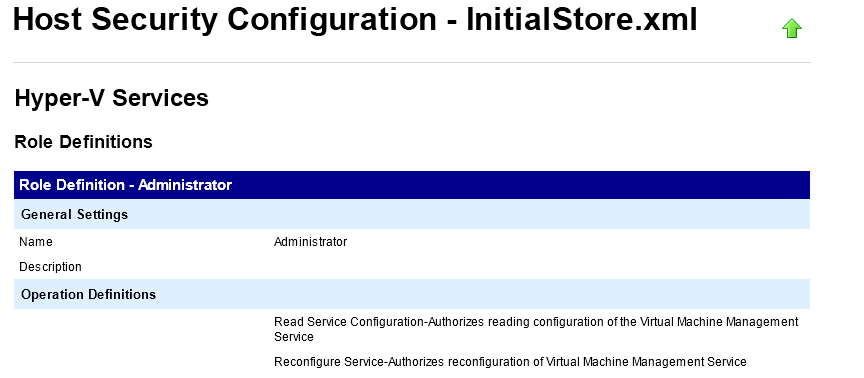

The Host Security Report will be located at the very bottom of the overall report.
